egger welding attachment 16 mm
€ 58,80 inkl. MwSt
Includes 20% MwSt.
plus shipping
Delivery Time: immediately available (7-14 days)
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
- Welding mandrel and welding bush
- seamless plastic welding
- For any commercially available socket welder
- Non-stick coating
Payment methods:
Bank transfer:
For delivery or self collection
What you need to know about the egger welding attachment 16 mm
The egger welding attachment 16 mm is used for mounting the egger panel heating or panel cooling system:

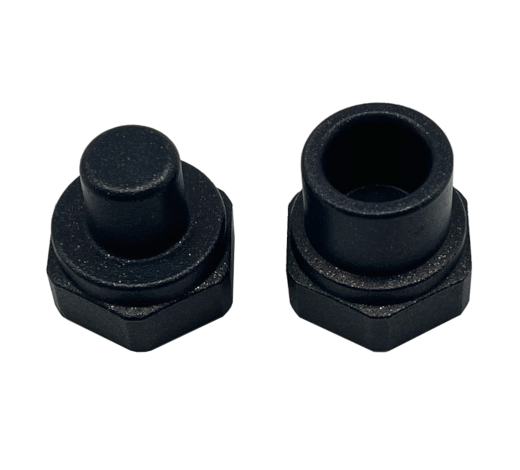

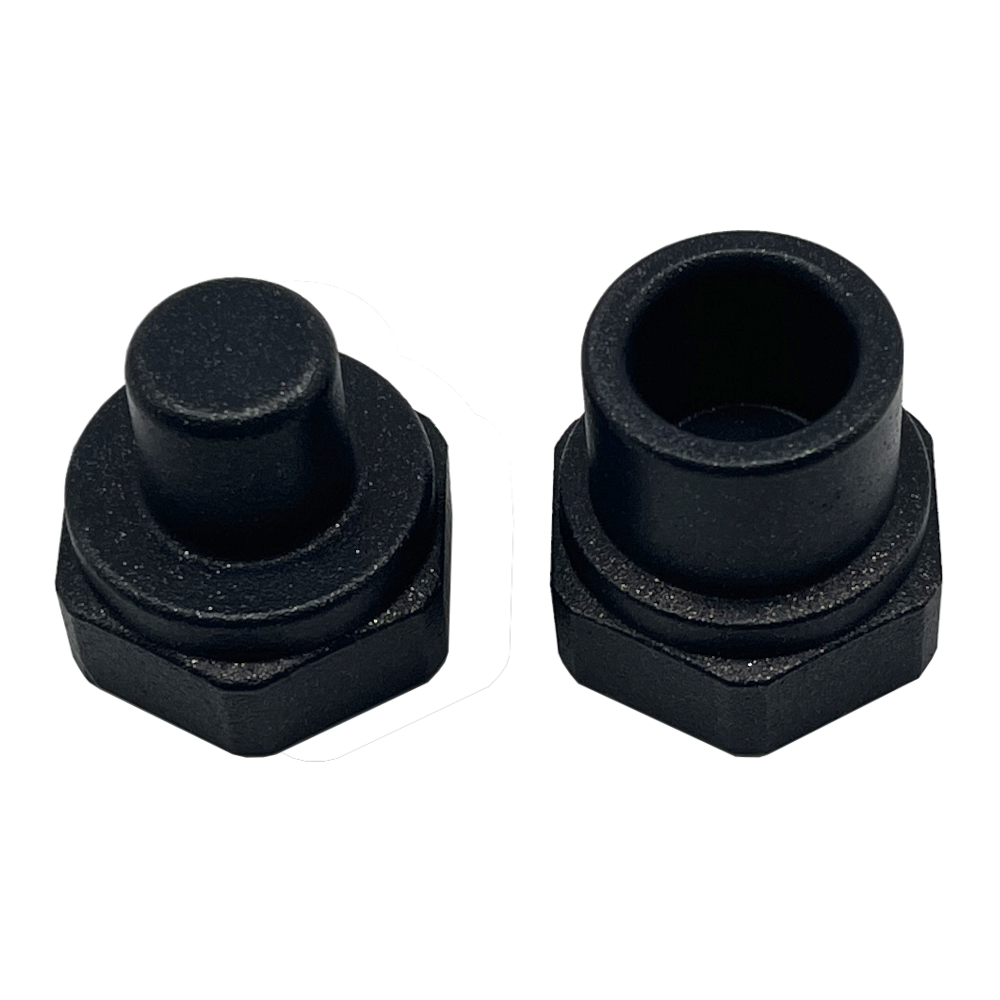

The egger welding attachment 16 mm consists of the welding mandrel and the welding bush, which are attached to standard socket welding equipment with a threaded rod. The welding mandrel (outer diameter 16 mm) and the welding bush (inner diameter 16 mm) heat the mating parts of the egger system to join them together with a seamless plastic weld. For ideal welding, we recommend setting the temperature of the socket welder so that the welding attachment reaches a temperature of 260 °C. The plastic parts are heated for 4 seconds on the attachments and then guided into each other.
You can connect the following egger accessories with the egger welding attachment 16 mm:
Welding mandrel 16 mm
– Outer sleeve
– Exterior angle
Welding bush 16 mm
– 16s pipe
– egger register
The egger welding attachment 16 mm is made of aluminum and is equipped with a high-quality non-stick coating. Due to the high thermal conductivity, the operating temperature is reached quickly and the non-stick layer enables a trouble-free welding process.
Underfloor heating
Wall heating
Ceiling heating
The egger system is not only for home heating and cooling: they can be used for office space, as hall heating, workshop heating or even greenhouse heating.
A great advantage of egger registers: they are suitable for any heat source (gas, oil, solar, district heating, photovoltaic, …) and any surface (tile, PVC, laminate, parquet, wood, …).
The egger welding attachment 16 mm as part of the egger system
The egger accessories are available so that you can mount and connect the registers as a heating and cooling system:
- egger register
- Outer angle (connecting part 90°)
- Internal angle double nipple (connecting part 90°)
- Inner angle nipple socket (connecting part 90°)
- Outer socket (connecting part straight)
- Double nipple (connecting part straight)
- Plug (closure part)
- 16 pipe (connecting pipe)
- Holding rail (48 cm) or holding clamp (8 cm)
- Plastic welding set
- Own pipe shear
- Item Type: Welding Attachment for Socket Welder
- Field of application: plastic welding
- Dimensions:
Welding mandrel outer diameter: 16 mm
Welding bush inner diameter: 16 mm - Material: aluminum with non-stick coating
- Weight: 85 g / attachment
- Operating temperature: 260 °C
- Color: gray
Depending on your needs, you can get welding attachments 16 mm consisting of 1 piece welding mandrel and 1 piece welding bush.
How many egger welding tips 16 mm do you need?
In every project, you need at least one egger welding attachment 16 mm. Depending on the scope of the project and the socket welding equipment used at the same time, several egger welding attachments 16 mm may also be useful. To do this, think about how many people will be working on plastic welding at the same time. The egger team will be happy to help you find the right amount:
Frequently asked questions about the egger system
You still have questions about the egger system? Here you will find answers to our customers' most pressing questions: Frequently asked questions
