egger welding attachment set
€ 176,40 inkl. MwSt
Includes 20% MwSt.
plus shipping
Delivery Time: immediately available (7-14 days)
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
- Welding mandrel and welding bush (10 mm, 12 mm and 16 mm)
- seamless plastic welding
- For any commercially available socket welder
- Non-stick coating
Payment methods:
Bank transfer:
For delivery or self collection
What you need to know about the egger welding attachment Setmm
The egger welding attachment set is used for mounting the egger panel heating or panel cooling system:

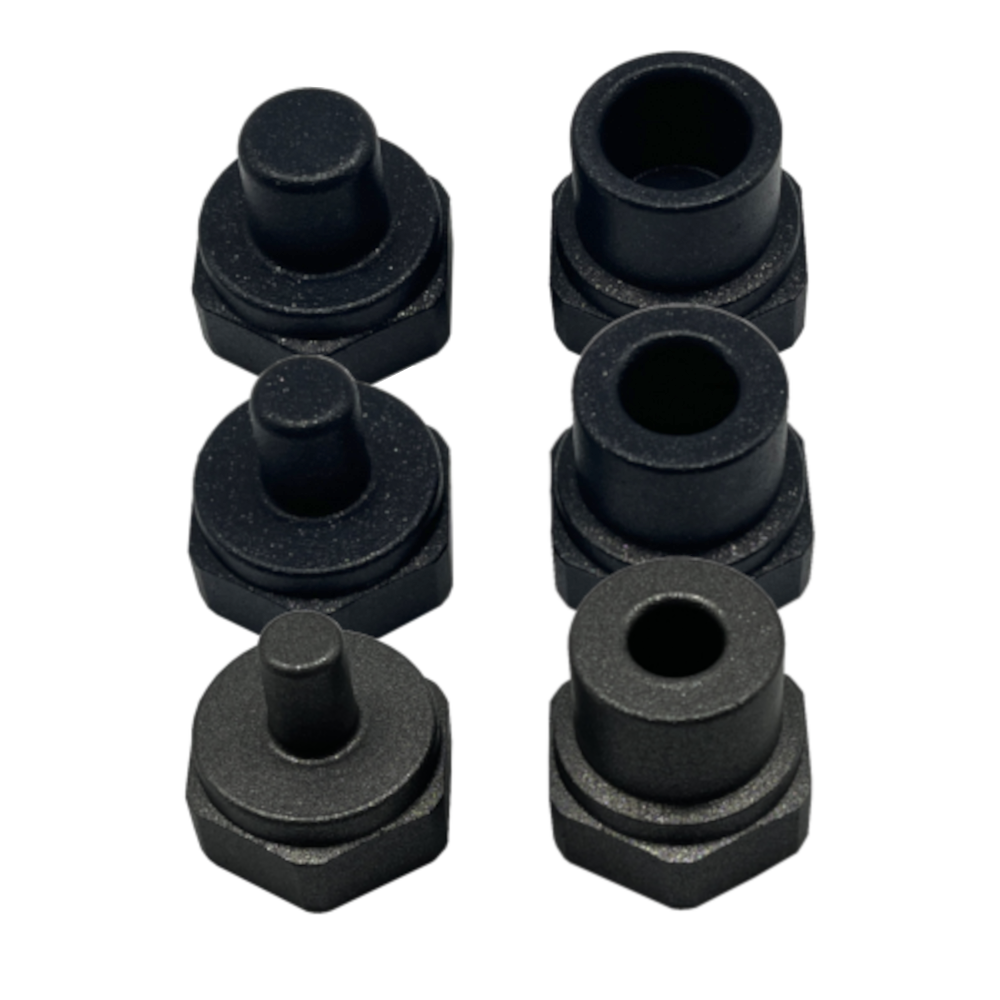

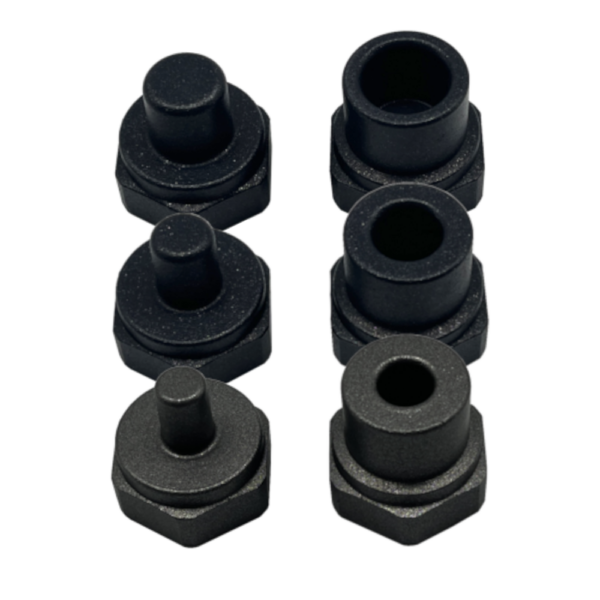

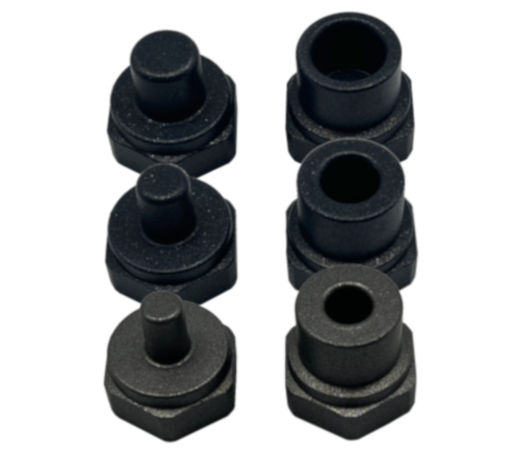

The egger welding attachment set consists of the egger welding attachment 10 mm, egger welding attachment 12 mm and egger welding attachment 16 mm. The welding attachments each contain a welding mandrel and a welding bush, which are attached to standard socket welding equipment with a threaded rod. The welding mandrel and welding bush heat the mating parts of the egger system to join them together with a seamless plastic weld. You can connect all components of the egger system with the egger welding attachment set.
For ideal welding, we recommend setting the temperature of the socket welder so that the welding attachment reaches a temperature of 260 °C. The plastic parts are then heated for 4 seconds on the attachments and then guided into each other.
The egger welding attachments are made of aluminum and are equipped with a high-quality non-stick coating. Due to the high thermal conductivity, the operating temperature is reached quickly and the non-stick layer enables a trouble-free welding process.
Underfloor heating
Wall heating
Ceiling heating
The egger system is not only for home heating and cooling: they can be used for office space, as hall heating, workshop heating or even greenhouse heating.
A great advantage of egger registers: they are suitable for any heat source (gas, oil, solar, district heating, photovoltaic, …) and any surface (tile, PVC, laminate, parquet, wood, …).
The egger welding attachment set as part of the egger system
The egger accessories are available so that you can mount and connect the registers as a heating and cooling system:
- egger register
- Outer angle (connecting part 90°)
- Internal angle double nipple (connecting part 90°)
- Inner angle nipple socket (connecting part 90°)
- Outer socket (connecting part straight)
- Double nipple (connecting part straight)
- Plug (closure part)
- 16 pipe (connecting pipe)
- Holding rail (48 cm) or holding clamp (8 cm)
- Plastic welding set
- Own pipe shear
- Item Type: Welding Attachments for Socket Welder
- Field of application: plastic welding
- Dimensions:
Welding attachment 10 mm
Welding attachment 12 mm
Welding attachment 16 mm - Material: aluminum with non-stick coating
- Weight: 255 g / set
- Operating temperature: 260 °C
- Color: gray
Depending on your needs, you can get a set of egger welding attachments consisting of the egger welding attachment 10 mm, egger welding attachment 12 mm and egger welding attachment 16 mm.
How many egger welding attachment sets do you need?
In any project, you will need at least one of the egger welding attachments included in the set. Depending on the scope of the project and the socket welding equipment used at the same time, several egger welding attachment sets may also be useful. To do this, think about how many people will be working on plastic welding at the same time. The egger team will be happy to help you find the right amount:
