Retaining clip
€ 5,40 – € 108,00 inkl. MwSt
Includes 20% MwSt.
plus shipping
Delivery Time: immediately available (7-14 days)
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
- Suitable for any wall, floor and ceiling
- Setup with dry system & wet system possible
- Easy do-it-yourself installation thanks to egger installation tutorials
- Environmentally friendly – 100% recyclable material
Payment methods:
Bank transfer:
For delivery or self collection

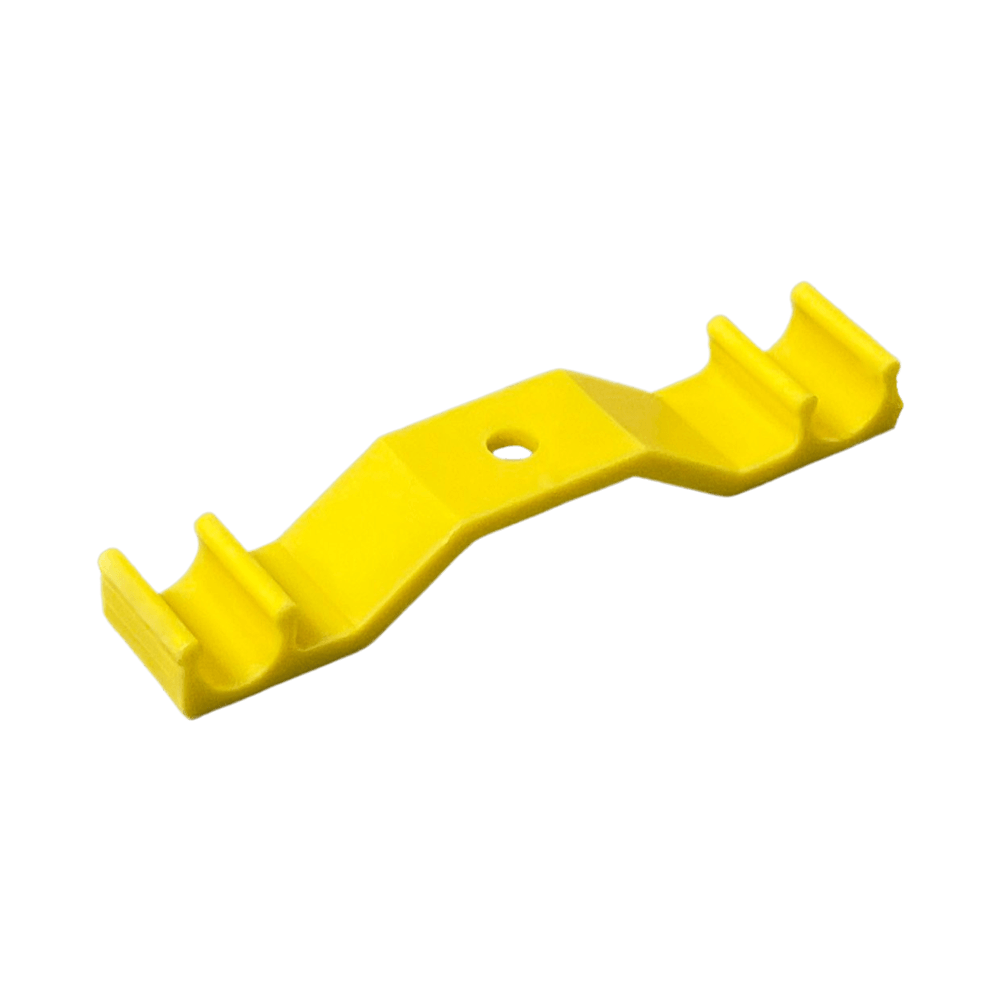

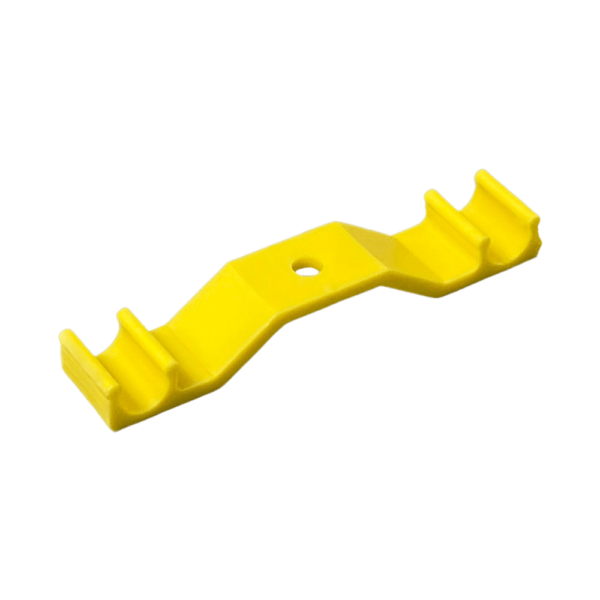

What to know about the holding clamp
The retaining clip is used as part of the egger system for surface heating or surface cooling:
The retaining clip has two clip connections for 10 mm tubes with a center distance of 80 mm. It can be clipped onto the egger register to fix it selectively to surfaces.
The retaining clip has a hole provided in its center for fastening, with screws and nail dowels it can thus be fixed to the substrate. As a rule, it is placed close to the collector in order to firmly attach the egger register due to its rigidity. Additional point fastening is necessary if the egger registers have a low overlap in wet construction. For these types of setups, you should use additional retaining clips:
- Floor surfaces with leveling compound (without insulation)
- Plastered wall surfaces
- Plastered ceiling surfaces
Should you need additional retaining clips, these can also be obtained from surplus retaining rails. With the help of a pipe c utter you can cut out three retaining clips from a retaining rail. You can find out how to adequately supplement the egger registers with retaining clips or retaining rails in our assembly instructions.
The retaining clip is made of PP-R. This is a high-quality material from the group of polyolefin thermoplastics. This material is 100% recyclable and is even used in the food industry.
Thanks to its high strength and resistance to internal pressure and high temperatures, it is used mainly in drinking water and heating installations. In addition, the fabric can be easily processed into fittings or pipes.
According to the manufacturer, the retaining clip has a heat resistance of up to 96 degrees. However, for tempering you need a maximum of 25-30 degrees of warm water.
The density or DIN value of the material is DIN 4726/8077/8078. In the laboratory, a service life of 150 years was calculated under extreme continuous load (10 bar and 60 °C). That’s why when you buy the egger system, you also get a 20-year warranty.
Underfloor heating
Wall heating
Ceiling heating
The egger system is not only for home heating and cooling: they can be used for office space, as hall heating, workshop heating or even greenhouse heating.
A great advantage of egger registers: they are suitable for any heat source (gas, oil, solar, district heating, photovoltaic, …) and any surface (tile, PVC, laminate, parquet, wood, …).
The retaining clip as part of the egger system
The egger accessories are available so that you can mount and connect the registers as a heating and cooling system:
- egger register
- Outer angle (connecting part 90°)
- Internal angle double nipple (connecting part 90°)
- Inner angle nipple socket (connecting part 90°)
- Outer socket (connecting part straight)
- Double nipple (connecting part straight)
- Plug (closure part)
- 16 pipe (connecting pipe)
- Holding rail (48 cm) or holding clamp (8 cm)
- Plastic welding set
- Own pipe shear
- Item type: plastic retaining clip for water-carrying underfloor heating system
- Field of application: fastening of egger registers
- Dimensions:
Length: 95 mm
Width 17 mm - Material: PP/R (“Polypropylene/Random” – is a high-quality, 100% recyclable material from the group of polyolefin thermoplastics)
- Weight: 6.0 g / piece, 150.0 g / package
- Color: yellow
- Density/DIN value: DIN 4726/8077/8078
- Shelf life: 150 years (depending on temperature and pressure)
- Flooring: Suitable for all common floor coverings (parquet, wood, stone, tile, laminate, cork, vinyl, carpet, etc.).
- Substrate: mountable on all common substrates (concrete, wood, brick, insulation, etc.)
- Installation height: at least 20 mm (screed, leveling compound, plaster, drywall, etc.)
- Suitable for rooms: all rooms (living area, bathroom, bedroom, basement, garage, workshop, hall, gym, production hall, etc.).

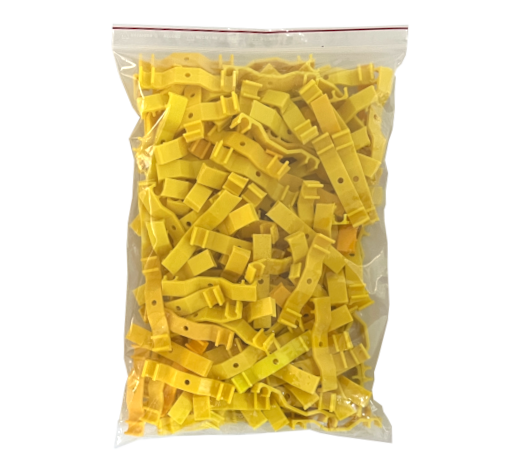

Depending on your needs , you can get packaging units with 200 retaining clips each.
How many brackets do you need?
Each project is different and has different setups. How many retaining clips you need depends largely on how many egger registers require further fastening. Based on experience, we recommend that you plan 4 retaining clips per egger register that is additionally fastened. The egger team will be happy to help you find the right amount:
Frequently asked questions about the egger system
You still have questions about the egger system? Here you will find answers to our customers' most pressing questions: Frequently asked questions
