€ 3,36 – € 67,20 inkl. MwSt
Includes 20% MwSt.
plus shipping
Delivery Time: immediately available (7-14 days)
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
Plug
€ 3,36 – € 67,20 inkl. MwSt
Includes 20% MwSt.
plus shipping
Delivery Time: immediately available (7-14 days)
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
- Heating & cooling at the same time
- Suitable for any wall, floor and ceiling
- Suitable for any heat and energy source
- Setup with dry system & wet system possible
- No minimum or maximum build height
- No sweating, no mold, no freezing, no drafts, no dust swirling up
- Easy do-it-yourself installation thanks to egger installation tutorials
- Environmentally friendly – 100% recyclable material
Payment methods:
Bank transfer:
For delivery or self collection
What to know about tamping

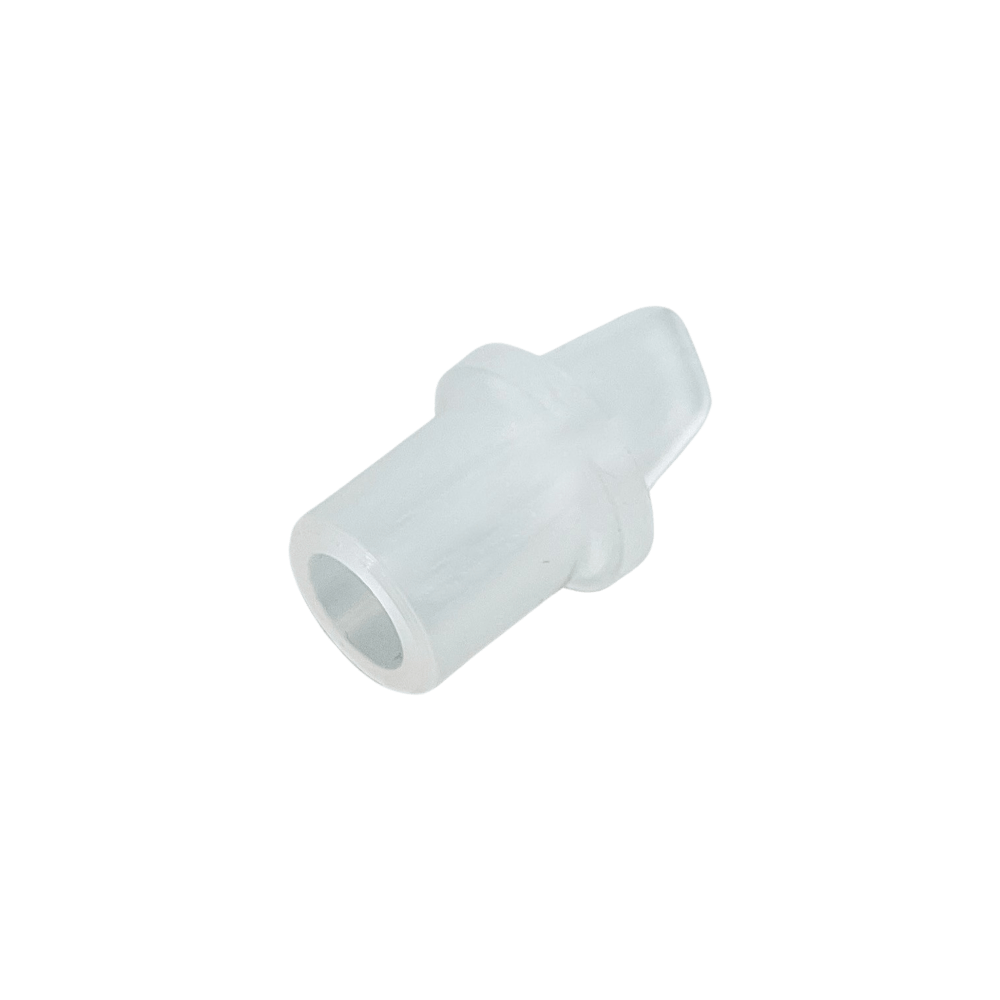

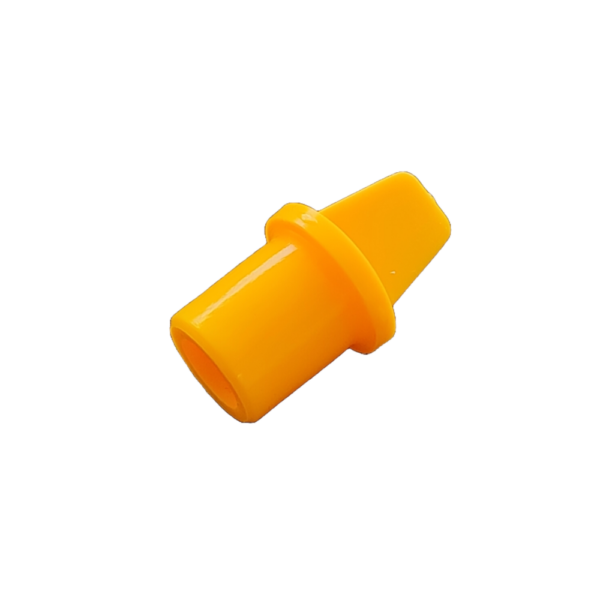

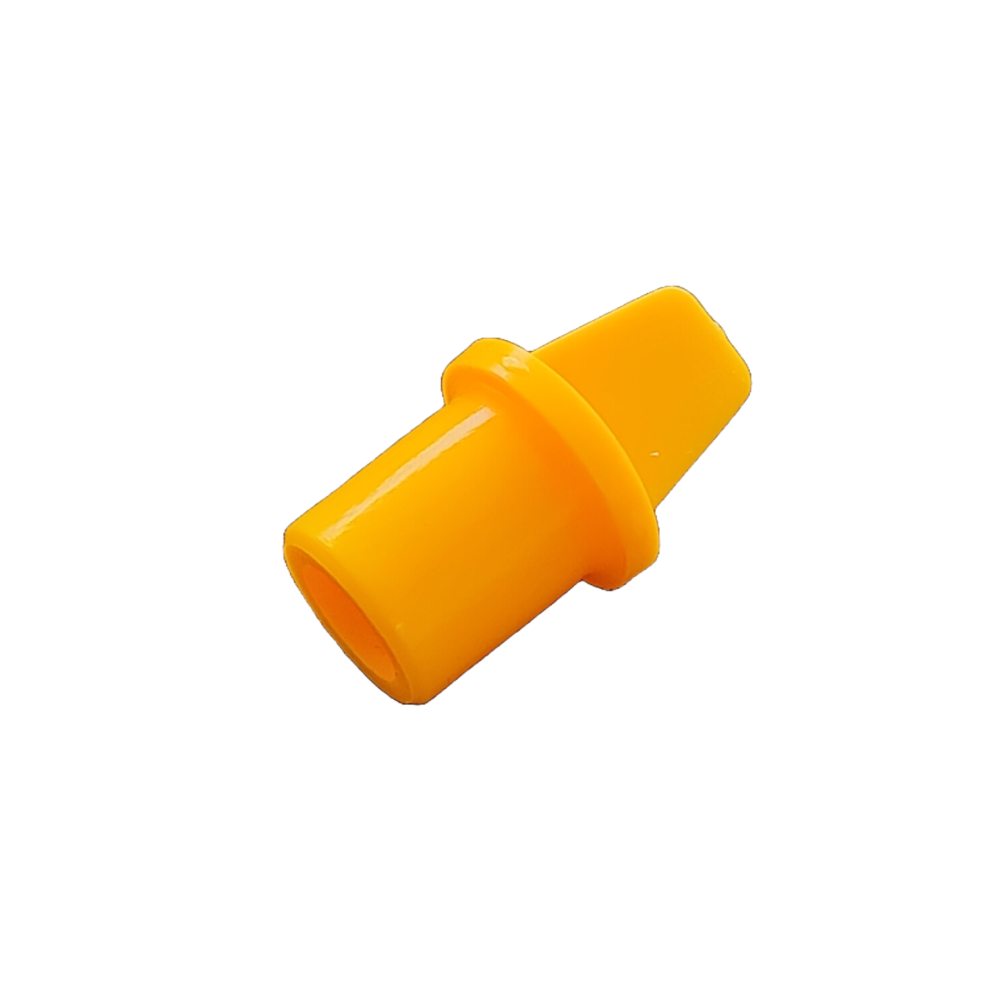

The plug is used as part of the egger system for surface heating or surface cooling:
The nipples of the plug have an outer diameter of 12 mm, which corresponds to the inner diameter of the egger register. You can join these mating parts with a socket welder and the egger welding attachment 12 mm with a plastic weld.
The plug has the task of stopping the flow of water. The egger registers are open on all 4 corners at the factory, so they can be connected or shortened in width as desired. For the application of the Tichelmann system, the parallel flow, the egger register is always closed at two diagonal corners during assembly with the plug. You can find the correct application in our assembly instructions.
The plug is made of PP-R. This is a high-quality material from the group of polyolefin thermoplastics. This material is 100% recyclable and is even used in the food industry.
Thanks to its high strength and resistance to internal pressure and high temperatures, it is used mainly in drinking water and heating installations. In addition, the fabric can be easily processed into fittings or pipes. The individual parts can be joined together by plastic welding.
The color of the plug is called “nature”. This makes the plastic slightly “transparent”, thanks to the lack of dye there is no interference during welding.
You can use any commercially available socket welder for this purpose. However, the egger welding attachments are required. The matching egger welding attachments can also be ordered or borrowed in the complete plastic welding set for assembly.
According to the manufacturer, the plug has heat resistance up to 96 degrees. However, this varies depending on the system pressure. However, for tempering you need a maximum of 25-30 degrees of warm water.
The density or DIN value of the material is DIN 4726/8077/8078. In the laboratory, a service life of 150 years was calculated under extreme continuous load (10 bar and 60 °C). That’s why when you buy the egger system, you also get a 20-year warranty.
Underfloor heating
Wall heating
Ceiling heating
The egger system is not only for home heating and cooling: they can be used for office space, as hall heating, workshop heating or even greenhouse heating.
A great advantage of egger registers: they are suitable for any heat source (gas, oil, solar, district heating, photovoltaic, …) and any surface (tile, PVC, laminate, parquet, wood, …).
The plug as part of the egger system
The egger accessories are available so that you can mount and connect the registers as a heating and cooling system:
- egger register
- Outer angle (connecting part 90°)
- Internal angle double nipple (connecting part 90°)
- Inner angle nipple socket (connecting part 90°)
- Outer socket (connecting part straight)
- Double nipple (connecting part straight)
- Plug (closure part)
- 16 pipe (connecting pipe)
- Holding rail (48 cm) or holding clamp (8 cm)
- Plastic welding set
- Own pipe shear
- Item type: plastic fitting for water-carrying floor heating system
- Area of application: heating and cooling
- Dimensions:
Nipple outer diameter: 12 mm
Fitting outer diameter: 16 mm - Material: PP/R (“Polypropylene/Random” – is a high-quality, 100% recyclable material from the group of polyolefin thermoplastics)
- Weight: 1.5 g / piece, 15.0 g / pack
- Maximum temperature: according to the manufacturer up to 96 degrees – but depends on the system pressure; for heating and cooling a temperature of 25-30 degrees is sufficient.
- Color: Natural (no dye – no interference with welding, slightly transparent).
- Density/DIN value: DIN 4726/8077/8078
- Shelf life: 150 years (depending on temperature and pressure)
- Oxygen diffusion open: To prevent corrosion damage, use corrosion-resistant pipes in the heating system.
- Heat source: Suitable for all commercially available heat and energy sources (e.g. oil, gas, wood, solar, electricity, electric, district heating, etc.).
- Flooring: Suitable for all common floor coverings (parquet, wood, stone, tile, laminate, cork, vinyl, carpet, etc.).
- Substrate: mountable on all common substrates (concrete, wood, brick, insulation, etc.)
- Installation height: at least 20 mm (screed, leveling compound, plaster, drywall, etc.)
- What can flow through: “Normal heating water” (neutral PH value)
- Suitable for rooms: all rooms (living area, bathroom, bedroom, basement, garage, workshop, hall, gym, production hall, etc.).

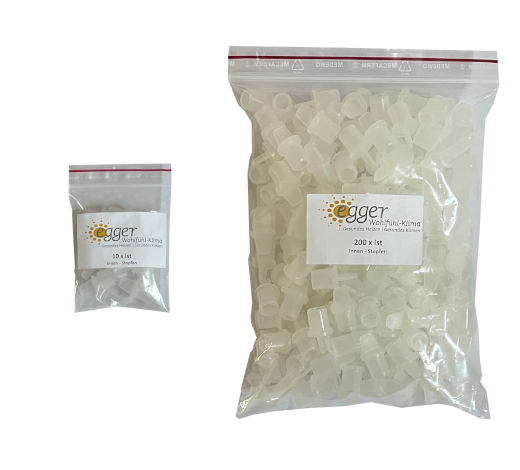

Depending on your needs, you can get packaging units with 10 or 200 plugs each.
How many plugs do you need?
Each project is different and has its own dimensions. How many plugs you need depends largely on your circumstances. Based on experience, we recommend that you plan for 1.5 plugs per planned egger register. The egger team will be happy to help you find the right amount:
